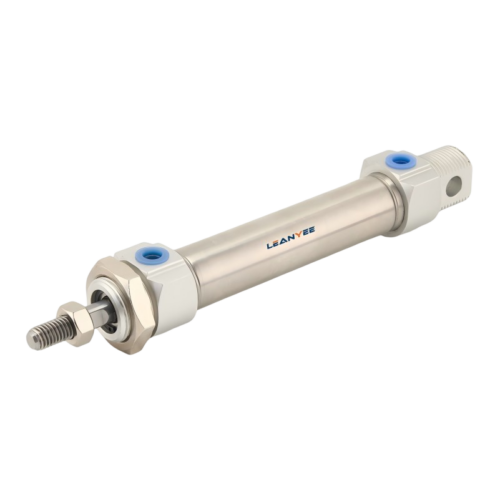

Stainless-steel mini-cylinder LY-MA series(φ16~63)
- Model: MA16-50SCA
-
Bore Size(mm)
16\20\25\32\40\50\63 -
Stroke(mm)
25\50\750\80\100\125\150\160\175\200 -
Action Type
Double acting type\Single acting type -
Max Pressure
1.5MPa
- Complies with corporate internal standards;
- The piston adopts special-shaped bidirectional sealing structure,compact dimension with oil storage function;
- Fixed anti-collision pads are equipped on front and rear covers to reduceimpact during cylinder reversing;
- Various styles of rear covers are available for easier cylinder installation;
- The front &rear covers are connected to stainless steel cylinder barrelby riveting and rolling wrapping structure for reliable connection;
- The cylinder barrel is made of high-precision stainless steel tubefeaturing high strength and corrosion resistance;
- A full range of cylinder specifications and mounting accessories areoptional for customers;
- All cylinders of this series are fitted with magnets.
